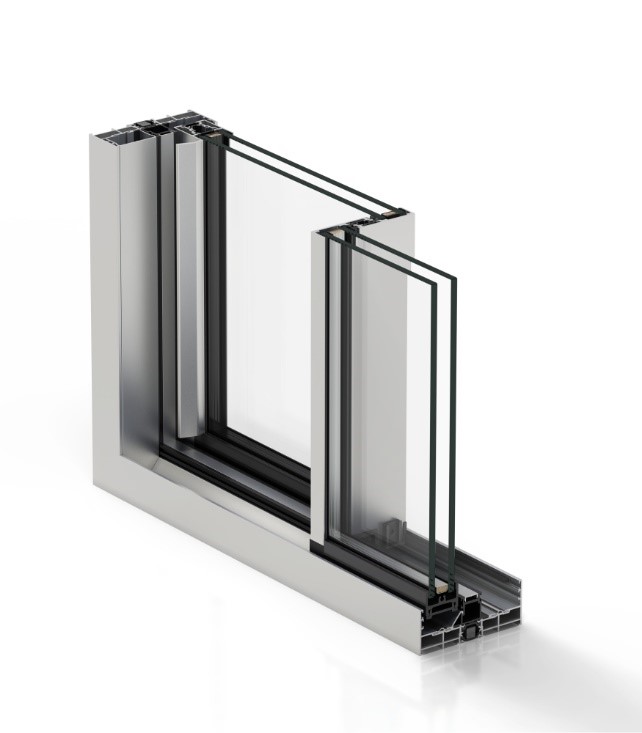

Cor vision

Sliding system with Thermal Barrier with an avant-garde design that allows a very good brightness with a minimum of visible aluminum section. With an elegant design, it tries to offer maximum brightness with minimal heel sections, 8% profile of the entire surface.

Shows visible central section only 20 mm, side section 77 mm. and bottom/top of 57 mm. Possibility of incorporation in the finish of the lower, upper and side heel.

Possibility of joining the sheets in a 90º corner without uprights. For the version with 1 running track, composed of fixed and sheet, it has a hidden running track in the fixed area. For the version of straight end-to-end sheets, we also have the GALANDAJ system: designed to be able to create an integral opening by the fact that the sheets slide completely inside the wall. A 100% opening surface is thus obtained.

This GALANDAJ option presents frame with 1 or 2 running ways, allowing to obtain balcony doors of 1 and 2 hidden leaves.

Features a new case for 2 and 3 tracks that allows the use of a stainless track that gives them a smoother slide, a higher weight of the sliding part (up to 320 Kg/cc) and a longer life .

Traditional mounting system with perimeter frame and end-to-end sheets that allows the sheet to be removed in case the glass is broken, or if the aluminum profile is defective, etc. There is the possibility of using the multi-point closure on the rod.

Cor 4200

Versatile system with perimeter frame and with the possibility of using end-to-end or perimeter sheets.

It presents the option of using sheets with rounded or straight aesthetics.

For the version of straight end-to-end sheets, we also have the 4200 Glisanta GALANDAJ system: designed to be able to create an integral opening by the fact that the sheets slide completely inside the wall. A 100% opening area is thus obtained.

This GALANDAJ acquisition presents a frame with 1 or 2 running ways, allowing to obtain balcony doors of 1, 2 and 4 hidden leaves.

Cor 4600

The new lifting sliding door system features greater thermal insulation of the complete sliding range with unbeatable transmittance (Uw) values starting from 0.9 (W/m²K).

This maximum energy efficiency is possible thanks to the perfect combination of the thermal break zone with 35 and 24 mm polyamides, the reticulated PE profiles and the high glazing capacity present in the sheets, which allow glass up to 55 mm thick, offering the option of install double-chamber and triple-glass compositions to guarantee exceptional thermal insulation and to improve, in particular, noise protection.

The possibility of large sheet sizes makes this system an ideal one to close the skylights, ensuring interior brightness without renouncing the maximum thermal and acoustic performance.

This sliding door is based on a system in which the leaves are mounted with a mechanism that allows the lifting in the opening maneuver and the lowering in the closing one, in such a way that the closed door rests on the lower and lateral longitudinal seals, producing joining in any position and improving astel, tightness and acoustic insulation. It is a robust system in appearance and light at the same time, with a fine opening and a perfect slide of sheets on a stainless steel rail, which prevents wear of the part.

It presents a current design with straight aesthetics in sheets and battens.

It presents the possibility of two visible section options in the central node, the standard of 110 mm and the minimalist of only 50 mm.
