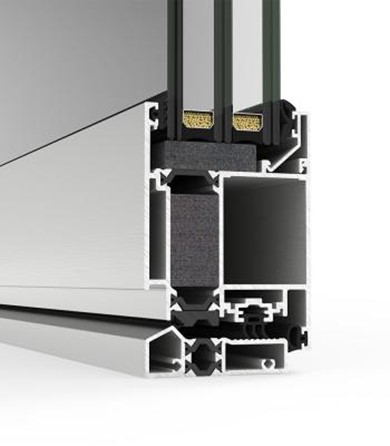

MILLENIUM PLUS 70 DOOR

Right 70 mm pedestrian door system with Thermal Barrier for commercial spaces and buildings.

With a thermal transfer value of only 0.9 W/m²K, it achieves some very good thermal performances and the possibility of glazing gives it maximum acoustic insulation.

The possibility of using hinges with high resistance (applied or reinforced channel hinges) capable of supporting up to 220 Kg. weight per sheet.

The possibility of using hidden hinges with maximum dimensions and weights per sheet of 2,700 mm. height, 1,500 mm width and 120 Kg. and with a maximum leaf opening of 100º.

It can be used as an emergency exit with an anti-panic device according to EN 179 and EN 1125 standards.

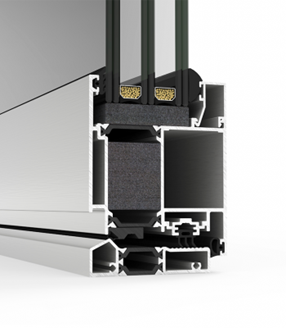

Millennium Plus 80 door with BT

The new coplanar pedestrian door system with straight lines of 80 mm with Thermal Bridge Breaker for commercial spaces and buildings.

With the transmittance value of the door starting from 0.8 W/m²K, this system can have excellent thermal performances and the 64 mm glazing capacity allows to guarantee maximum acoustic insulation.

The possibility of using high resistance hinges (applied or reinforced channel hinges) that can support a weight of up to 220 Kg/sheet.

The possibility of using hidden hinges with the following dimensions and maximum weights per sheet: height 2,700 mm, width 1,500 mm and 120 Kg and with a maximum opening of the sheet at 100º.

The system is valid for emergency exit configuration with anti-panic devices according to EN 179 and EN 1125 norms.

COR 60/70/80

Single doors, double doors, inward/outward opening, pivoting doors.
